Hardox® Materials

Hardox® 400
Hardox® 400 is available as plate in thicknesses of 4.0 – 130.0 mm, and as sheet in thicknesses of 2.0 – 8.0 mm. Hardox® 400 plate is available in widths up to 3350 mm and lengths up to 14630 mm. Hardox® 400 sheet is available in widths up to 1650 mm and lengths up to 16000 mm.
Hardox® 450
Hardox® 450 is available as plate in thicknesses of 3.2 – 130.0 mm, as sheet in thicknesses 2.0 – 8.0 mm and as cold rolled sheet in thicknesses 0.8 – 2.1 mm. For thicknesses over 80 mm the preferred width is 1650 mm.
Hardox® 500
Hardox® 500 is available as plate in thicknesses of 4.0 – 103.0 mm and as sheet in thicknesses of 2.0 – 7.0 mm. Hardox® 500 plate is available in widths up to 3350 mm and lengths up to 14630 mm. Hardox® 500 sheet is available in widths up to 1650 mm and lengths up to 16000 mm.
Hardox® 600
Hardox® 600 is available as plate in thicknesses of 6.0 – 65.0 mm and as sheet in thicknesses of 3.0 – 6.0 mm. Hardox® 600 is available in widths up to 2000 mm and lengths up to 14630 mm. Preferred dimensions for the plates are 2000 x 4000 mm and for the sheets the preferred dimensions are 1250 x 3000 or 1500 x 3000 mm depending on thickness. Other dimensions on request.
Hardox® Extreme
Hardox® Extreme is available as plate in thicknesses of 8.0 – 19.0 mm, up to 2000 mm in width and up to 14630 mm in length, preferred widths are 2000 x 4000 mm, other width on request.

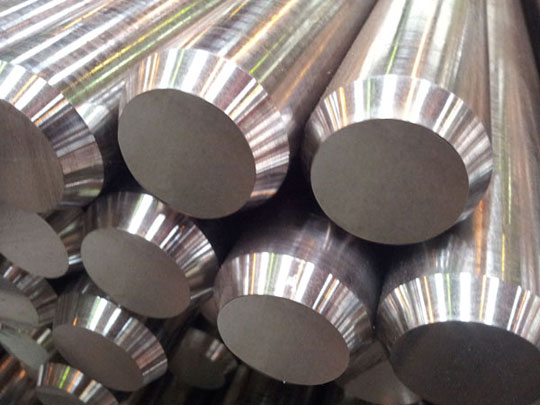

Hardox® round bars
Hardox® steel round bars are versatile, ready-to-use high-strength steel rods that combine strength, high toughness, good bendability and good weldability in an absolutely unique way. They deliver the same high performance you would expect from Hardox® steel across a variety of abrasion-resistant and wear-resistant applications.
Hardox® Tubes and Pipes
As hard and tough as our wear plate, Hardox® tubes and pipes offer outstanding performance when you need both high abrasion resistance and a lighter product. These long-lasting, abrasion-resistant steel pipes and wear-resistant steel tubes at a hardness of 400 HBW or 500 HBW can replace costly wear products like hard-faced overlay pipe and high-chrome white iron. They also outperform and outlast mild steel pipe in extreme applications, such as in pipes that convey caustic, abrasive slurry.
Hardox® HiTemp
Hardox® HiTemp is a high-heat grade of Hardox® wear plate that provides a cost-efficient solution for wear resistance at high temperatures in the 300–500°C range (570–930°F). Whereas traditional quenched and tempered wear-resistant steels lose hardness at higher temperatures, Hardox® HiTemp high-temperature steel delivers extreme wear resistance. Its properties are achieved by using high-quality raw material combined with a carefully controlled manufacturing process. Hardox® HiTemp is delivered as 5–51 mm (0.197’’–2’’) plate. It can be cut, welded and machined using the same kind of machinery and technology as for conventional steel.

Hardox® Properties

Hardox® Properties

Hardox wear plate lets your products and machines stand up to the toughest treatment. Hardox maximizes service life, minimizes the risk of break-down and makes it possible to schedule maintenance with much greater precision
